Name: E6A Mini PC (Gaming, SO-DIMM)
Brand: Liyu Electronics
SKU: E6A Mini PC (Gaming, SO-DIMM)
Availability: InStock

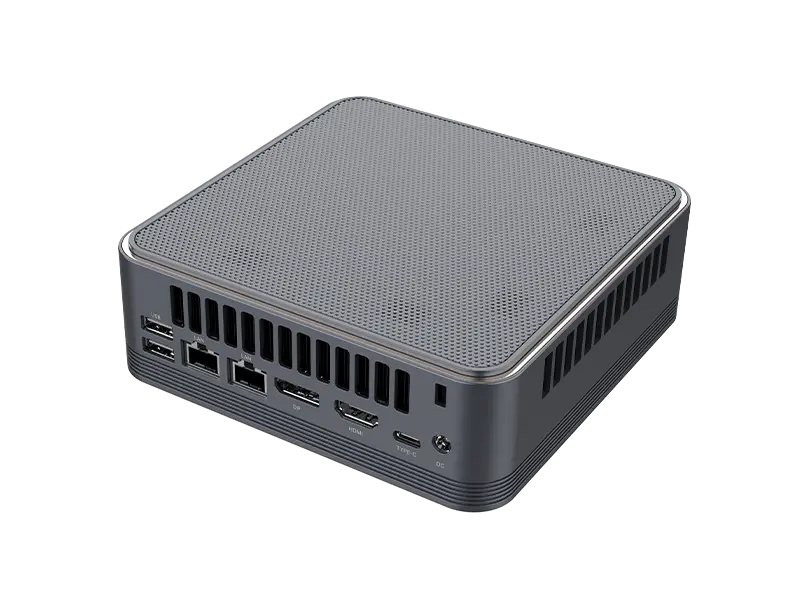

E6A Mini PC (Gaming, SO-DIMM)

Processor

155H
255H
285H

Independent Graphics Card

Memory

DDR4
DDR5
LPDDR5

PRODUCT DETAILS

Powered by the latest Intel® and AMD® platforms, the E6A delivers powerful AI computing, gaming, and multitasking performance. Its premium aluminum chassis, advanced cooling system, RGB ambient lighting, and flexible expandability make it an ideal solution for gaming, content creation, and AI applications.

Processor (CPU)	Intel Platform (Recommended): 155H / 255H /285Hand other Meteor Lake & Arrow Lake series processors Compatible: Alder Lake 12th/Raptor Lake 13th/14th Gen H/HX Series Processors
	AMD Platform (Recommended): AI 9 HX 370 / AI 7 PRO 350 and other AI 200 / AI 300 Series Compatible: Ryzen 6000 / 7000 / 8000 Series
Memory (RAM)	Up to 64GB	SO-DIMM DDR4/DDR5 *2
		or LPDDR5(a part of AMD Platform)
Storage(ROM)	Up to 4TB	M.2 2280 Nvme*2
		Or M.2 2280 Nvme1 M.2 2280 sata&Nvme1
I/O Ports	USB4;Type-C2;HDMI®1;DP1;RJ452(2.5G) Phone Jack1; DC Jack*1
Operating System (OS)	Windows11/Linux

System	Dimensions	14714752mm
System	Material	PC+ABS
Wireless Connectivity	Wi-Fi & Bluetooth	WIFI5/ 6 /7& BT 4.2/5.2/5.4/6.0
I/O	USB	USB 3.0*4 5Gbps
	Type-C	Type C *2
	Video Output	HDMI® *1;（support 4K ，Partial 8K support）
	Video Output	DP *1；（support 4K ，Partial 8K support）
	Ethernet	RJ45*2(2.5G )
	DC Input	5.5/2.1mm DC Jack*1
	Audio In & Out	3.5mm Phone Jack*1
Power Supply Unit	Input:100~240V 50/60Hz Output:19V/6.3A DC Jack 5.5*2.1mm
Environmental Temperature	Operating Temperature	0~40℃
	Storage Temperature	-20~60℃
	Humidity	90% @ 40 °C (Non-condensing)
