Hardware Configuration
|
|
Items
|
Details
|
Descriptions
|
Comments
|
|
Product Form
|
Form
|
Tablet
|
|
|
CPU
|
Type
|
Intel Alder-N Lake N150 up to 3.4GHz
|
N200/N305 optional
|
|
GPU
|
Integrated
|
Intel® UHD Graphics, (up to 750MHz)
|
|
|
RAM
|
Built-in
|
LPDDR5 , up to 16GB
|
|
|
Storage
|
2242 M.2 SATA3
|
up to 2TB
|
|
|
UFS2.1
|
up to 256GB
|
|
|
LCD
|
Built-in
|
7"/HD/IPS
|
800*1280
|
|
TP
|
Built-in
|
5 points，COF
|
|
|
Bettery
|
Built-in
|
RTC 2302
|
|
|
Capacity
|
7.6V/3400mAh
|
|
|
Camera
|
Front
|
PCBA Reserved connector
|
USB optional/NA
|
|
Sensor
|
G-Sensor
|
Support
|
|
|
HALL/LID
|
Support
|
|
|
L-Sensor
|
Optional
|
|
|
Ethernet
|
Built-in
|
8111H, RJ45 port, 1000M/100M/10M
|
|
|
Wi-Fi
|
Built-in
|
802.11 (b/g/a/n/ac/ax)
|
AX201
|
|
Bluetooth
|
Built-in
|
BT5.2
|
|
|
Ports
|
|
Items
|
Details
|
Descriptions
|
Comments
|
|
LED indicator
|
Power
|
Power（Blue） Lan(Green/Orange) Charge（Red）
|
|
|
Button
|
Physical buttons
|
Power 、CLS CMOS
|
|
|
Adapter
|
Power input
|
Type-C, PD3.0
|
Support PD adapter/non full functionality
|
|
USB Port
|
Data transmit
|
USB3.2 Gen 1 *3 USB2.0*1
|
|
|
Type-C
|
full function
|
Type-C USB(USB3.0/PD/DP)*1 Type-C (PD3.0)*1
|
|
|
HDMI
|
HD Video output
|
HDMI 2.1 TMDS*1（Output4096x2160@60Hz）
|
|
|
Earphone Jack
|
Audio output
|
∮3.5mm，CTIA
|
|
|
MIC
|
Audio input
|
Support
|
|
|
Speaker
|
Audio output
|
Support 8Ω1W*1
|
|
|
System
|
|
Items
|
Details
|
Descriptions
|
Comments
|
|
OS
|
|
Windows11
|
|
|
Language
|
|
multi-language
|
|
|

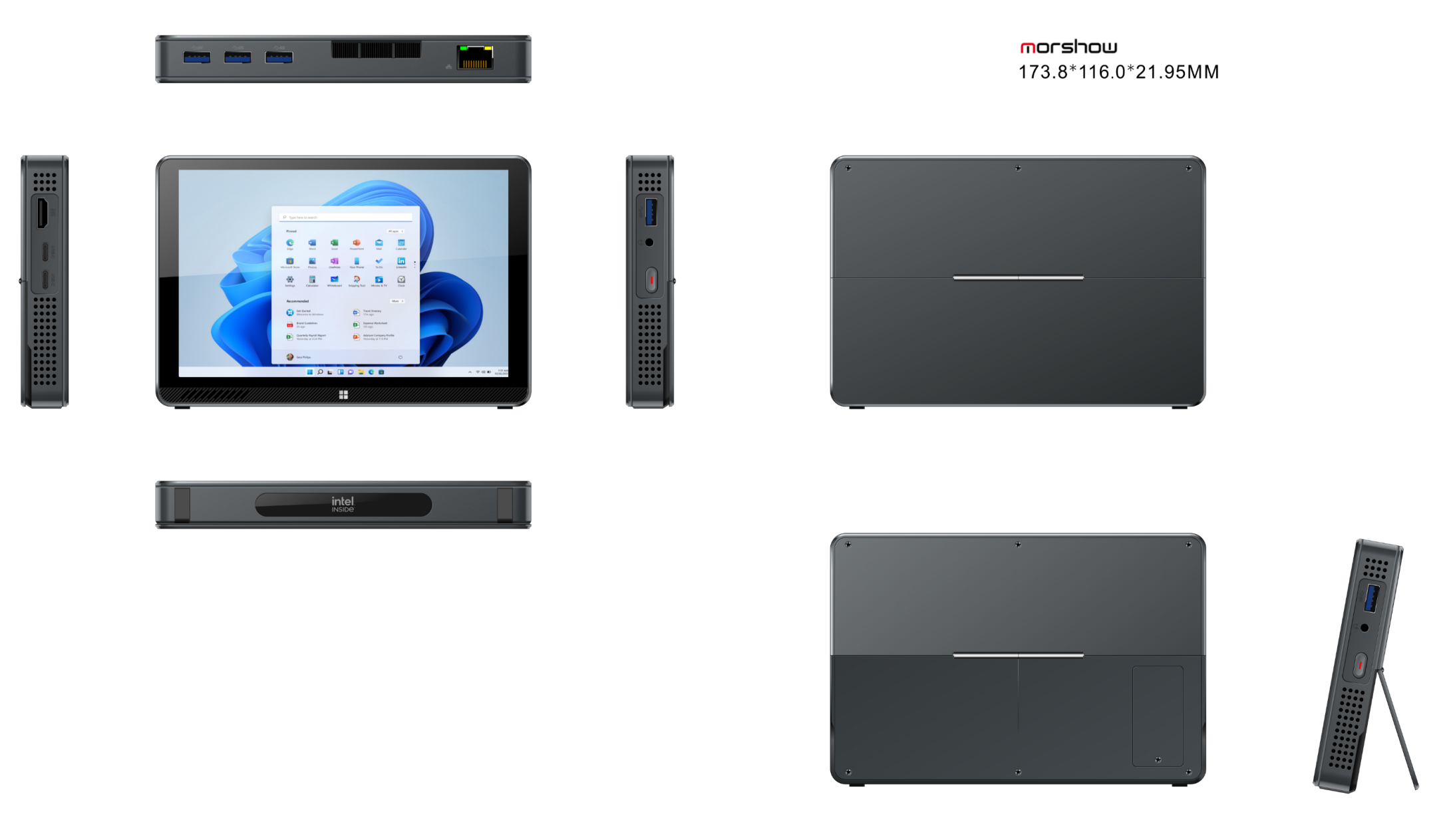

ID（173.8*116*21.95MM）
|
|
